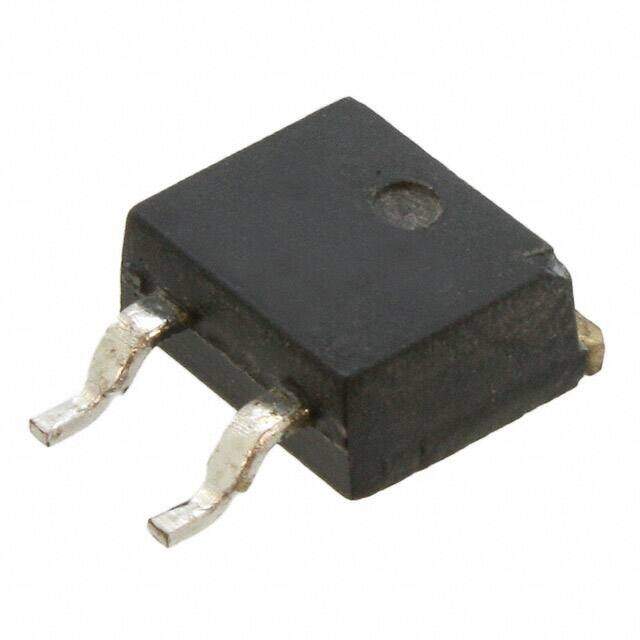

TDH35PR200J
RoHS
/
Package TO-263-3, D2Pak (2 Leads + Tab), TO-263AB
Category Resistors / Chip Resistor - Surface Mount
Description
TO-263-3D2Pak (2Leads + Tab) TO-263AB FIXED RESISTOR TDH35 0.398Lx0.378W 10.10mmx9.60mm 35W 200mOhm ±700ppm/C
PDF
/
Inventory: 8897
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Package / Case TO-263-3, D2Pak (2 Leads + Tab), TO-263AB
Surface Mount YES
Terminal Shape GULL WING
Mounting Feature SURFACE MOUNT
Technical
Operating Temperature -55°C~150°C
Packaging Bulk
Published 2002
Series TDH35
Size / Dimension 0.398Lx0.378W 10.10mmx9.60mm
Tolerance ±5%
JESD-609 Code e2
Feature Moisture Resistant
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Temperature Coefficient ±700ppm/°C
Resistance 200mOhm
Terminal Finish Tin/Silver (Sn/Ag)
Composition Thick Film
Voltage - Rated 350V
Additional Feature RATED POWER DISSIPATED USING HEAT SINK: 35W
Power Rating 35W
Voltage - Rated DC 350V
Construction RECTANGULAR PACKAGE
Resistor Type FIXED RESISTOR
Reach Compliance Code unknown
Lead Length 4.8mm
Size Code 4034
Dimensions
Height 4.5mm
Height Seated (Max) 0.185 4.70mm
Thickness 4.5mm
Compliance
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
