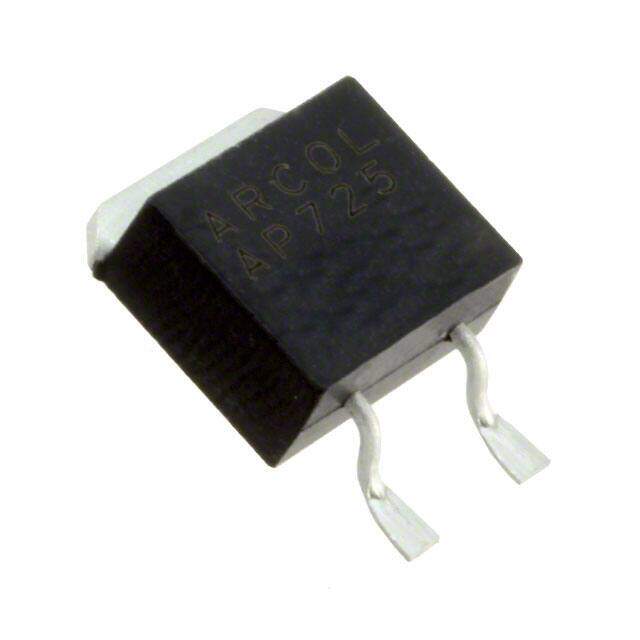

TDH35P25R0J image
Favorite
TDH35P25R0J image
Favorite

TDH35P25R0J

Ohmite
RoHS
/
Package TO-263-3, D2Pak (2 Leads + Tab), TO-263AB
Category Resistors / Chip Resistor - Surface Mount
Description TO-263-3D2Pak (2Leads + Tab) TO-263AB FIXED RESISTOR TDH35 0.398Lx0.378W 10.10mmx9.60mm 35W 25Ohm ±50ppm/C
PDF
/
Inventory: 3457
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Contains Lead
RoHS Status Non-RoHS Compliant

Dimensions

Height Seated (Max) 0.185 4.70mm
Height 4.5mm

Technical

Size Code 4034
Resistor Type FIXED RESISTOR
Construction RECTANGULAR PACKAGE
Voltage - Rated DC 350V
Power Rating 35W
Additional Feature RATED POWER DISSIPATED USING HEAT SINK: 35W
Voltage - Rated 350V
Composition Thick Film
Terminal Finish Tin/Silver (Sn/Ag)
Resistance 25Ohm
Temperature Coefficient ±50ppm/°C
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Feature Moisture Resistant
JESD-609 Code e2
Tolerance ±5%
Size / Dimension 0.398Lx0.378W 10.10mmx9.60mm
Series TDH35
Published 2002
Packaging Bulk
Operating Temperature -55°C~150°C

Physical

Mounting Feature SURFACE MOUNT
Terminal Shape GULL WING
Surface Mount YES
Package / Case TO-263-3, D2Pak (2 Leads + Tab), TO-263AB

Supply Chain

Factory Lead Time 11 Weeks
