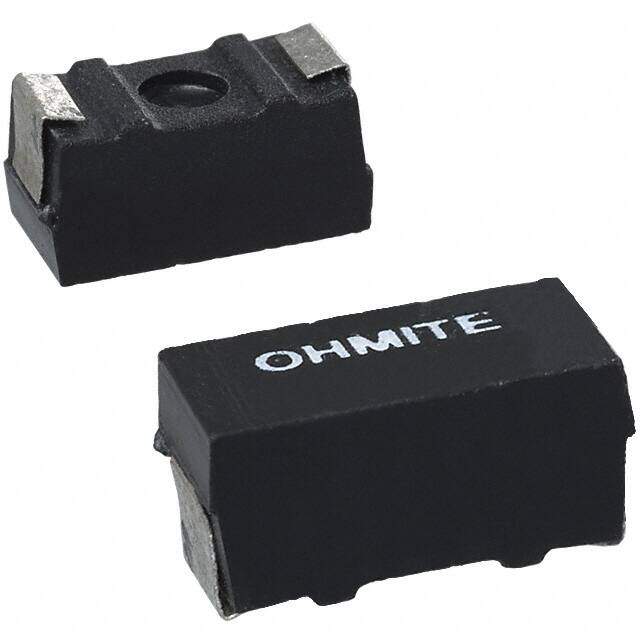

RW2S0DA1R00JET image
Favorite
RW2S0DA1R00JET image
Favorite

RW2S0DA1R00JET

Ohmite
RoHS
RoHS RoHS compliant
Package 4524 J-Lead
Category Resistors / Chip Resistor - Surface Mount
Description 4524J-Lead FIXED RESISTOR RW 0.455Lx0.240W 11.56mmx6.10mm 2W 1Ohm ±50ppm/C
PDF
/
Buying Options
Total Price: USD $3.19
Unit Price: USD $3.1856
≥1 USD $3.1856
≥10 USD $2.69632
≥100 USD $2.67344
≥500 USD $2.446048
≥1000 USD $1.990912
≥3000 USD $1.820262
Inventory: 978
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant

Dimensions

Height Seated (Max) 0.231 5.87mm
Height 5.8674mm

Technical

Rated Power Dissipation (P) 2W
Reach Compliance Code unknown
Resistor Type FIXED RESISTOR
Construction Pedestal Mount
Technology WIRE WOUND
Max Power Dissipation 2W
Packing Method TR, 13 Inch
Voltage - Rated DC 100V
Power Rating 2W
Subcategory Fixed Resistors
Composition Wirewound
Terminal Finish Matte Tin (Sn)
Resistance 1Ohm
Temperature Coefficient ±50ppm/°C
Termination J-Lead
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Current Sense
JESD-609 Code e3
Tolerance ±5%
Size / Dimension 0.455Lx0.240W 11.56mmx6.10mm
Series RW
Published 2011
Packaging Tape & Reel (TR)
Operating Temperature -55°C~150°C

Physical

Package / Case 4524 J-Lead
Mount Surface Mount

Supply Chain

Factory Lead Time 18 Weeks
