0765301046
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Backplane Connectors - Specialized
Description

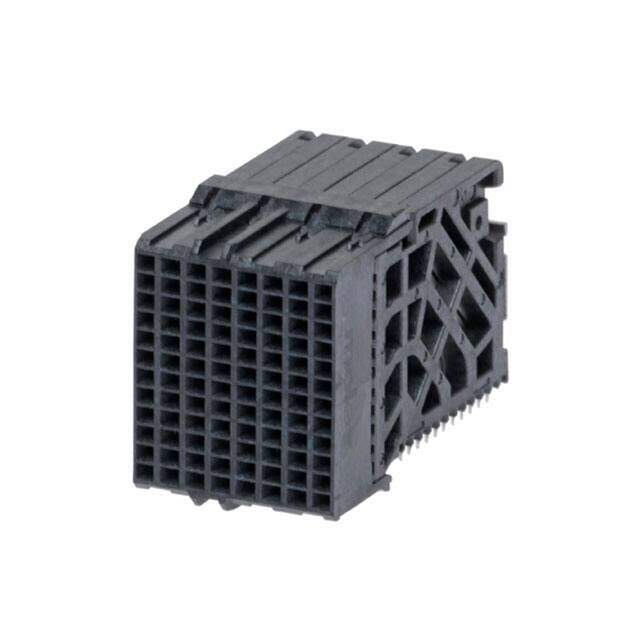

Impact 76530 ROHS3Compliant COMMERCIAL UL Connector Receptacle, Female Sockets 200Cycles .3336N 10mOhm -55C~85C
PDF
/
Inventory: 9864
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Length - Termination 0.047 inch
Plating Thickness 30μin
Contact Finish Thickness 30.0μin 0.76μm
Technical
Number of Columns 16
Contact Layout, Typical 80 Differential Pairs
Withdrawl Force-Min .14734 N
Insertion Force-Max .3336 N
Contact Pattern RECTANGULAR
Durability 200 Cycles
Connector Style Impact
Dielectric Withstanding Voltage 500VAC V
Insulation Resistance 1000000000Ohm
Contact Resistance 10mOhm
Contact Style SQ PIN-SKT
Rated Current (Signal) 0.75A
Number Of PCB Rows 15
Reliability COMMERCIAL
Contact Finish Gold
Reference Standard UL
Number of Conductors ONE
Number of Positions Loaded All
Total Number of Contacts 240
Pitch 0.053 1.35mm
Subcategory Headers and Edge Type Connectors
Voltage - Rated 30V
Number of Rows 15
Color Black
Number of Positions 240
Connector Type Receptacle, Female Sockets
Termination Press-Fit
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series Impact 76530
Packaging Tray
Operating Temperature -55°C~85°C
Physical
Mounting Option 1 LOCKING
Insulation Material THERMOPLASTIC
Mounting Type Through Hole
Contact Material NOT SPECIFIED
Supply Chain
Factory Lead Time 13 Weeks
