AEB36US09
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Desktop, Wall Adapters
Description

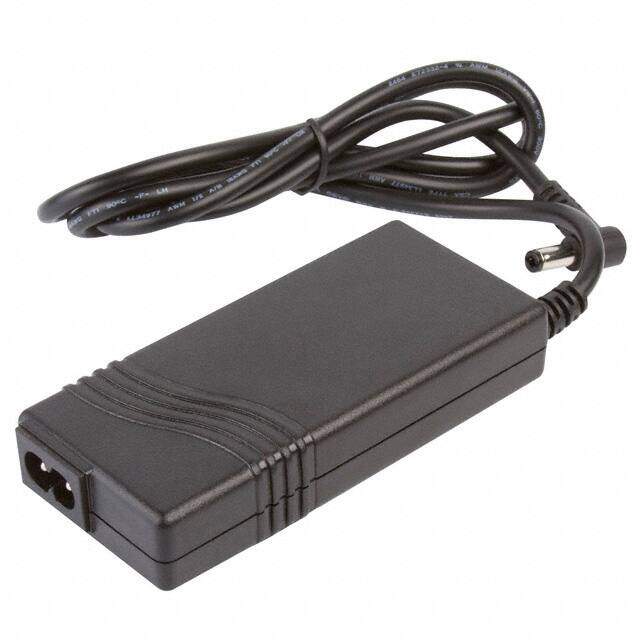

XP POWER AEB36US09 AC/DC Power Supply, Low Profile, Fixed, 1 Output, 90 V, 264 V, 27 W, 9 V
PDF
/
Inventory: 4198
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Height 20.066mm
Technical
Max Input Voltage (AC) 264V
Min Input Voltage (AC) 90V
No Load Power Consumption 500mW Max
Output Connector Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm
Input Connector IEC 320-C8
Cord Length 48 1.22m
Region Utilized International
Form Desktop (Class II)
Max Output Power 27W
Current - Output 1 3A
Max Input Voltage 264V
Min Input Voltage 90V
Output Power 27W
Input Type Cord (Sold Separately)
Output Current 3A
Voltage - Input 90V~264VAC
Polarization Positive Center
Polarity Positive
Voltage - Output 1 9V
Max Output Current 3A
Efficiency Level IV
Number of Outputs 1
Max Power Dissipation 27W
Power Rating 27W
Applications ITE (Commercial)
Connector Type Plug
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Discontinued
Size / Dimension 4.33Lx1.97W x 0.79 H 110.0mmx50.0mmx20.0mm
Series AEB36 (36W)
Published 2005
Operating Temperature 0°C~60°C
Physical
Weight 0.419lb 190.06g
Mount Desktop
