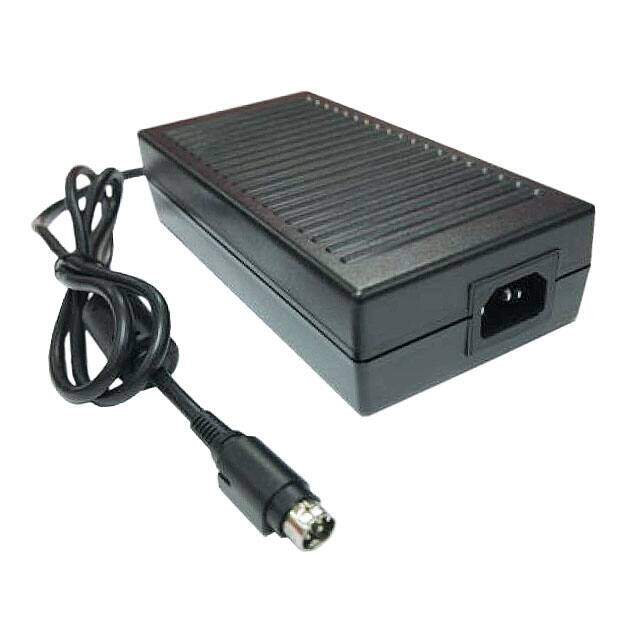

DT150PW190D
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Desktop, Wall Adapters
Description
TDK LAMBDA DT150PW190D POWER SUPPLY, AC-DC, 150W, 19V, 7.9A
PDF
/
Buying Options
Total Price: USD $95.43
Unit Price: USD $95.433806
≥1 USD $95.433806
≥10 USD $90.031896
≥100 USD $84.935753
≥500 USD $80.128067
≥1000 USD $75.592519
Inventory: 1351
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
REACH SVHC Unknown
Dimensions
Width 85.09mm
Length 170.18mm
Height 43.942mm
Technical
Max Input Voltage (AC) 264V
Min Input Voltage (AC) 90V
Output Connector Power DIN, 4 Pin
Input Connector IEC 320-C14
Cord Length 41.34 1.05m
Region Utilized International
Form Desktop (Class I)
Max Output Power 150W
Current - Output 1 7.9A
Max Input Voltage 264V
Min Input Voltage 90V
Voltage - Output 19V
Output Power 150W
Input Type Cord (Sold Separately)
Voltage - Input 90V~264VAC
Current - Output (Max) 7.9A
Max Current Rating 2.5A
Voltage - Output 1 19V
Max Output Current 7.9A
Efficiency Level VI
Number of Outputs 1
Max Power Dissipation 150W
Power (Watts) 150W
Applications ITE (Commercial)
Min Operating Temperature 0°C
Max Operating Temperature 60°C
Connector Type Power
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Size / Dimension 6.70Lx3.35W x 1.73 H 170.0mmx85.0mmx44.0mm
Series DT150-D (150W)
Published 2015
Operating Temperature 0°C~60°C
Physical
Weight 1.8lbs 816.5g
Supply Chain
Factory Lead Time 13 Weeks
