ECS65US12
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description

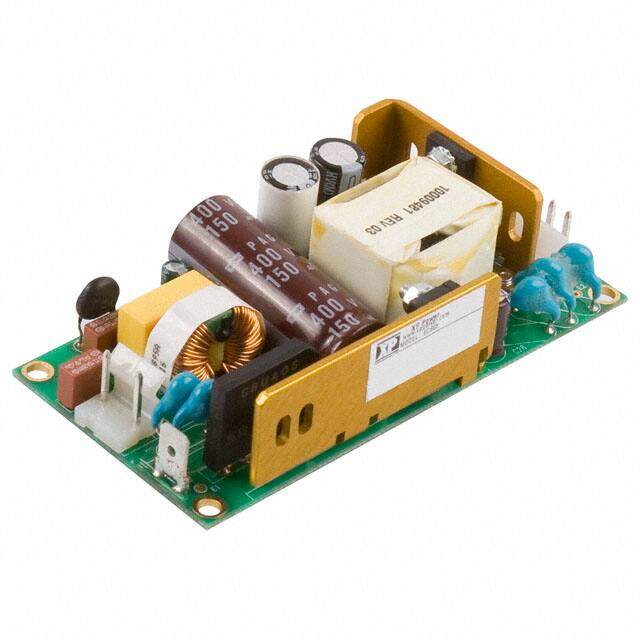

XP POWER ECS65US12 AC/DC Open Frame Power Supply, Medical, Adjustable, Fixed, 1 Output, 80 V, 264 V, 65 W, 12 V
PDF
/
Buying Options
Total Price: USD $43.26
Unit Price: USD $43.2586
≥1 USD $43.2586
≥10 USD $40.81
≥100 USD $38.5
≥500 USD $36.32075
≥1000 USD $34.26486
Inventory: 2722
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Width 50.8mm
Height 26.7mm
Technical
Max Input Voltage (AC) 264V
Min Input Voltage (AC) 80V
Nominal Output Voltage 12V
Minimum Load Required No
Max Output Power 65W
Current - Output 1 5.4A
Max Input Voltage 264V
Min Input Voltage 80V
Protections OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE
Output Power 65W
Output Current 5.4A
Voltage - Input 80V~264VAC
Max Output Current 5.4A
Output Voltage 12V
Voltage - Isolation 4kV
Efficiency 90%
Approval Agency CB
Number of Outputs 1
Max Power Dissipation 65W
Power Rating 65W
Subcategory Power Supply Modules
Applications ITE (Commercial), Medical
Type Open Frame
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Adjustable Output, DC Input Capable, Universal Input
Size / Dimension 4.00Lx2.00W x 1.05 H 101.6mmx50.8mmx26.7mm
Series ECS (65W)
Published 2010
Operating Temperature -20°C~70°C With Derating
Physical
Mounting Type Chassis Mount
Mount Chassis, Chassis Mount
Supply Chain
Factory Lead Time 24 Weeks
