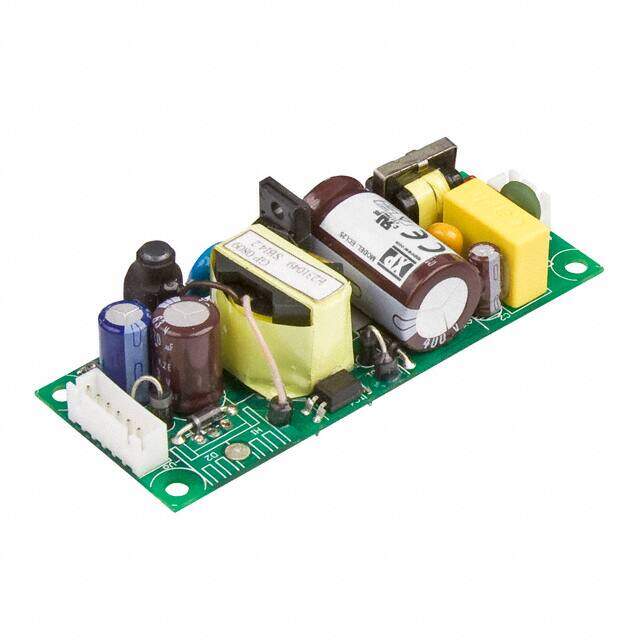

ECL25US03-T image
Favorite
ECL25US03-T image
Favorite

ECL25US03-T

XP Power
RoHS
RoHS RoHS compliant
Package /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description PSU, 20W, 3.3V, MINI, OPEN FRAME
PDF
/
Inventory: 1654
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant
REACH SVHC No SVHC

Dimensions

Width 34.6mm
Length 87.9mm
Height 22.352mm

Technical

Input Current 400μA
Nominal Output Voltage 3.3V
Minimum Load Required No
Max Output Power 20W
Protections OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE
Output Power 20W
Output Current 6A
Voltage - Input 85V~264VAC
Min Supply Voltage 85V
Max Supply Voltage 264V
Max Output Current 6A
Output Voltage 3.3V
Voltage - Isolation 3kV
Efficiency 75%
Approval Agency CSA, EN, IEC, UL
Number of Outputs 1
Max Power Dissipation 20W
Power Rating 20W
Subcategory Power Supply Modules
Applications ITE (Commercial)
Type Open Frame
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Adjustable Output, DC Input Capable, Universal Input
Size / Dimension 3.46Lx1.36W x 0.88 H 87.9mmx34.6mmx22.4mm
Series ECL (25W)
Published 2011
Operating Temperature -20°C~70°C With Derating

Physical

Mounting Type Chassis Mount
Mount Chassis, Chassis Mount

Supply Chain

Factory Lead Time 17 Weeks
