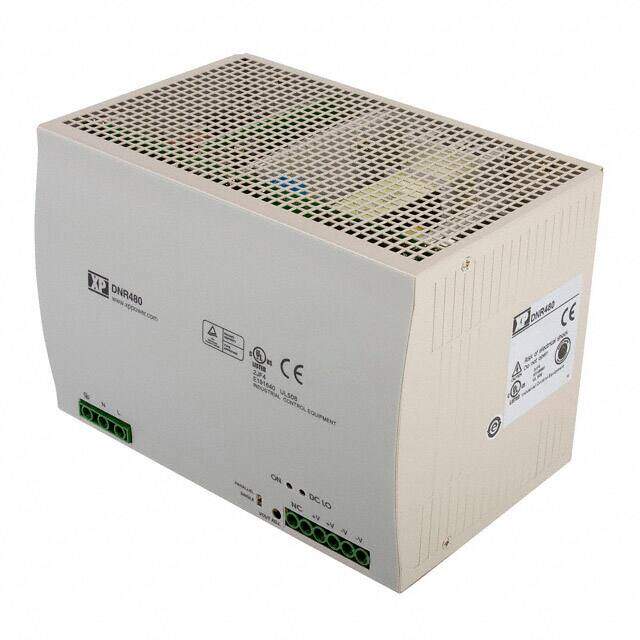

DNR480PS24
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC CONVERTER
PDF
/
Inventory: 2264
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mounting Type DIN Rail
Technical
Operating Temperature -40°C~70°C With Derating
Series DNR (480W)
Size / Dimension 6.89Lx4.57W x 4.92 H 175.0mmx116.0mmx125.0mm
Feature Adjustable Output, Standby Output, Universal Input
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Type Enclosed
Applications Hazardous Locations, Industrial, ITE (Commercial)
Power (Watts) 480W
Subcategory Power Supply Modules
Number of Outputs 1
Approval Agency CE
Efficiency 89%
Voltage - Isolation 3kV
Output Voltage 24V
Voltage - Output 1 24V
Current - Output (Max) 20A
Voltage - Input 90V~264VAC 120V~375VDC
Protections OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE
Total Power Output-Max 480W
Minimum Load Required No
Ripple Voltage (Main Out) 0.03535Vrms
Compliance
RoHS Status ROHS3 Compliant
