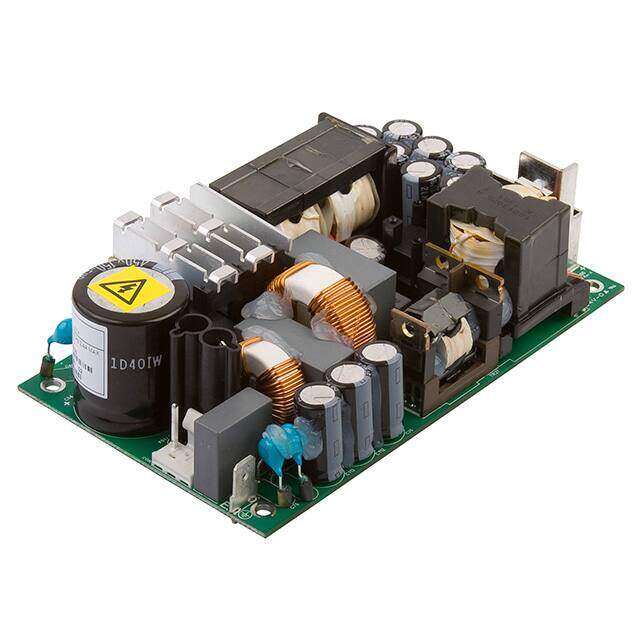

CCB200PS28
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC CONVERTER 28V 199W
PDF
/
Buying Options
Total Price: USD $147.31
Unit Price: USD $147.312759
≥1 USD $147.312759
≥10 USD $138.974301
≥100 USD $131.107826
≥500 USD $123.686638
≥1000 USD $116.685502
Inventory: 1200
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Minimum Load Required No
Output Power 200W
Voltage - Input 80V~264VAC
Current - Output (Max) 7.1A
Voltage - Output 1 28V
Voltage - Isolation 4kV
Efficiency 95%
Approval Agency CB, TUV, UL
Number of Outputs 1
Power (Watts) 199W
Applications ITE (Commercial), Medical
Type Open Frame
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Adjustable Output, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input
Size / Dimension 5.00Lx3.00W x 1.43 H 127.0mmx76.2mmx36.3mm
Series CCB200 (200W)
Published 2015
Operating Temperature -20°C~85°C With Derating
Physical
Mounting Type Chassis Mount
Supply Chain
Factory Lead Time 24 Weeks
