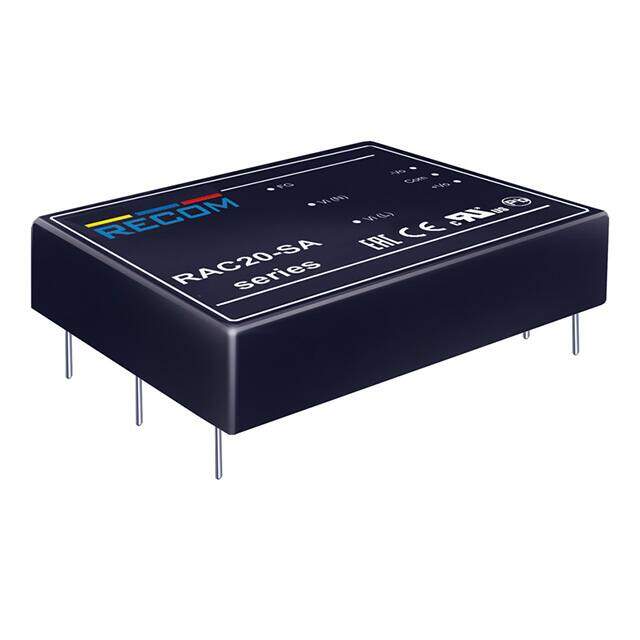

RAC20-09SA
RoHS
RoHS compliant
RoHS compliantPackage 8-DIP Module, 5 Leads
Category Power Supplies - Board Mount / AC DC Converters
Description
CONV AC/DC 2A 6.5-18VIN 3.0-5.5V
PDF
/
Inventory: 4858
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Width 48mm
Length 70mm
Height 22mm
Technical
Load Regulation ±1%
Line Regulation ±0.5%
Isolation Voltage 3kV
Max Output Voltage 9V
Output Current 2.23A
Voltage - Input 90V~264VAC
Trim/Adjustable Output NO
Input Voltage-Nom 115V
Max Output Current 2.23A
Output Voltage 9V
Efficiency 82%
Approval Agency CE, cULus
Number of Outputs 1
JESD-30 Code R-PDMA-T8
Number of Functions 1
Terminal Position DUAL
Technology HYBRID
Max Power Dissipation 20W
Applications ITE (Commercial)
Type Enclosed
ECCN Code EAR99
Number of Terminations 8
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Not For New Designs
Feature OCP, OVP, SCP
Size / Dimension 2.76Lx1.89W x 0.88 H 70.0mmx48.0mmx22.3mm
Series POWERLINE RAC20-A (20W)
Operating Temperature -25°C~70°C With Derating
Physical
Weight 0.243lb 110.22g
Package / Case 8-DIP Module, 5 Leads
Mounting Type Through Hole
Mount Through Hole
