CS5.241
RoHS
RoHS compliant
RoHS compliantPackage 120
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description

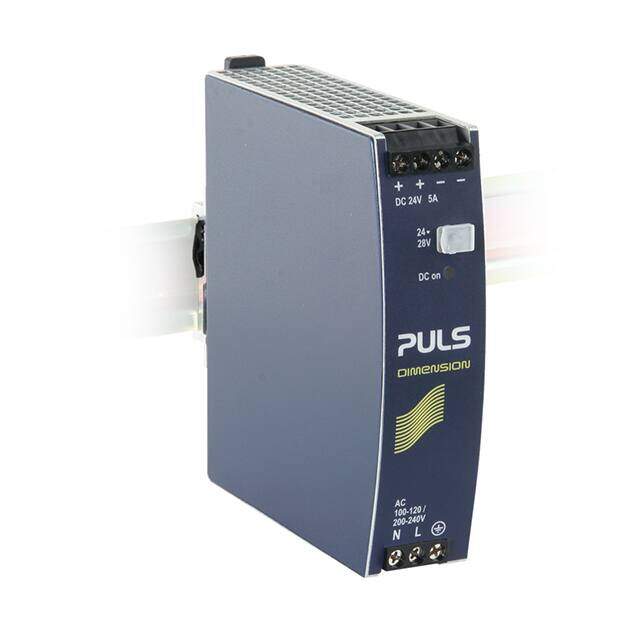

Switch Mode, 4.35A DIN Rail Panel Mount Power Supply, 24V dc to 28V dc Dimension
PDF
/
Buying Options
Total Price: USD $209.88
Unit Price: USD $209.88
≥1 USD $209.88
Inventory: 127
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Min Output Voltage 24V
Current - Output 1 5A
Max Input Voltage 240V
Min Input Voltage 100V
Max Output Voltage 28V
Output Current 5A
Voltage - Input 90V~132VAC 180V~264VAC
Trim/Adjustable Output YES
Input Voltage-Nom 100V
Output Voltage 24V
Voltage - Isolation 500V
Efficiency 90.2%
Approval Agency cCSAus, CE, cULus, cURus
Number of Outputs 1
JESD-30 Code R-PXMA-X8
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Reach Compliance Code not_compliant
Depth 124mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form UNSPECIFIED
Terminal Position UNSPECIFIED
Technology HYBRID
Power (Watts) 120W
Applications ITE (Commercial)
Type Enclosed
Number of Terminations 8
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
Feature Adjustable Output, Load Sharing
Size / Dimension 4.61Lx1.26W x 4.88 H 117.0mmx32.0mmx124.0mm
Series DIMENSION C (120W)
Operating Temperature 0°C~70°C With Derating
Physical
Weight 500g
Package / Case 120
Mounting Type DIN Rail
Mount DIN Rail
Supply Chain
Factory Lead Time 2 Weeks
