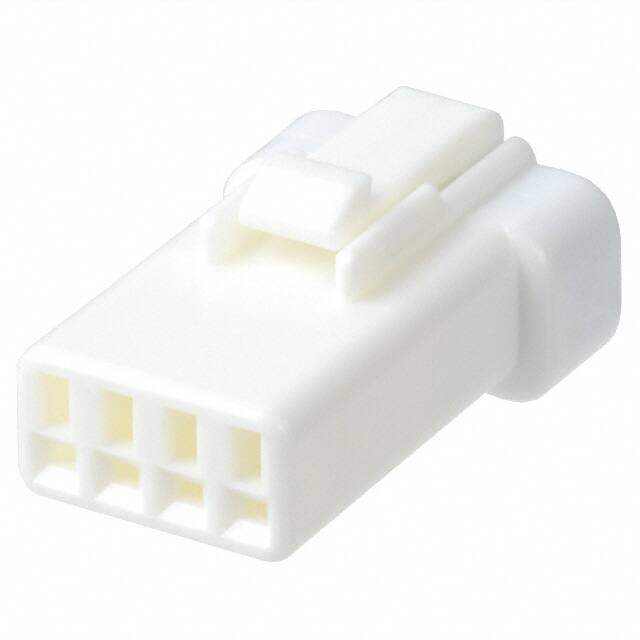

04R-JWPF-VSLE-S

JST Sales America Inc.
RoHS
RoHS RoHS compliant
Package /
Category Rectangular Connectors - Housings / Rectangular Connectors - Housings
Description CONN HOUSING RCPT JWPF 4POS 2MM
PDF
/
Buying Options
Total Price: USD $1.34
Unit Price: USD $1.34235
≥1 USD $1.34235
≥10 USD $1.102
≥100 USD $1.0678
≥500 USD $1.03265
≥1000 USD $0.99845
Inventory: 26006
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 16 Weeks

Physical

Contact Material Brass, Bronze, Tin
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Material Nylon
Housing Material PBT

Technical

Packaging Bulk
Published 2001
Series JWPF
Feature JIS C 0920 Grade Level 7
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Receptacle
Max Operating Temperature 85°C
Min Operating Temperature -25°C
Color Natural
Number of Rows 1
Fastening Type Latch Lock
Voltage - Rated DC 100V
Contact Finish - Mating NOT SPECIFIED
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option WATERPROOF
Pitch 0.079 2.00mm
Total Number of Contacts 4
Orientation Straight
Depth 7mm
Current Rating 3A
Voltage - Rated AC 100V
Lead Pitch 2mm
Empty Shell NO
Working Voltage 100V
Contact Resistance 10mOhm
Insulation Resistance 800MOhm
Note Contacts Not Included
Body Plating Tin
Wire/Cable Gauge 22 AWG
Number of Poles 4
Contact Termination Crimp

Compliance

REACH SVHC No SVHC
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
Ratings IP67

Dimensions

Height 5.5mm
Length 10.7mm
Width 16.5mm
