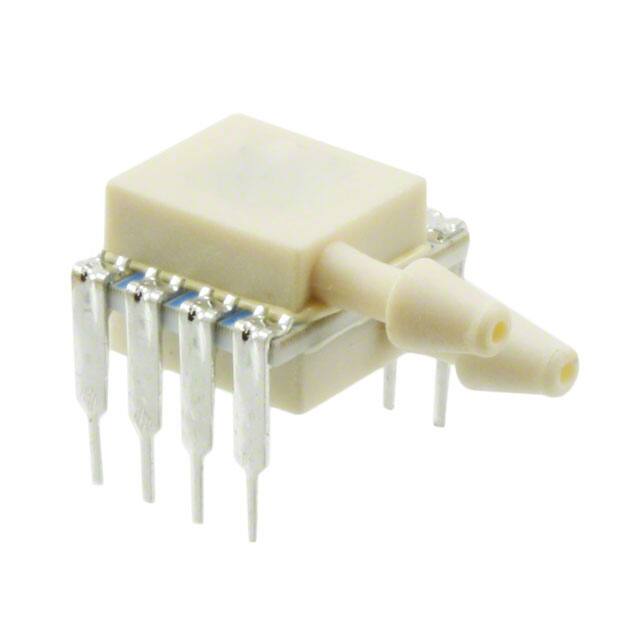

4525DO-DS5AI001DP
RoHS
RoHS compliant
RoHS compliantPackage 8-DIP Module
Category Pressure Sensors, Transducers / Pressure Sensors, Transducers
Description
SENSOR DIFF PRESS 1PSI 8DIP PCB
PDF
Buying Options
Total Price: USD $28.42
Unit Price: USD $28.422819
≥1 USD $28.422819
≥10 USD $26.81398
≥100 USD $25.29621
≥500 USD $23.864343
≥1000 USD $22.513533
Inventory: 1744
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Physical
Mount PCB
Package / Case 8-DIP Module
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
Technical
Operating Temperature -25°C~105°C
Published 2015
Series MS4525DO
Feature Temperature Compensated
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pin
Applications Board Mount
Voltage - Supply 5V
Output 14 b
Termination Style PC Pin
Body Length or Diameter 17.4mm
Body Breadth 12.4 mm
Output Type I2C
Number of Bits 14
Accuracy ±0.25%
Operating Pressure 1PSI (6.89kPa)
Pressure Type Differential
Port Style Barbed
Port Size Male - 0.14 3.56mm Tube Dual
Maximum Pressure 10PSI (68.95kPa)
Sensors/Transducers Type PRESSURE SENSOR,PEIZORESISTIVE
Housing CERAMIC
Pressure Range-Max 1 Psi
