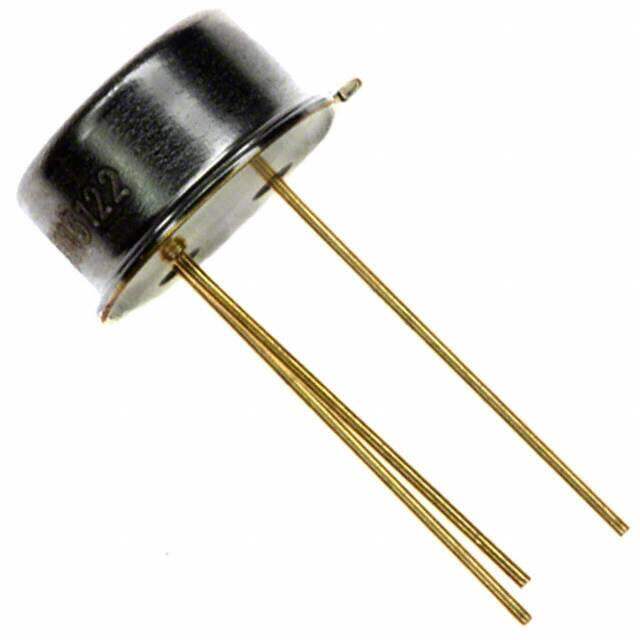

AD581KH
RoHS
RoHS compliant
RoHS compliantPackage TO-205AA, TO-5-3 Metal Can
Category PMIC - Voltage Reference / PMIC - Voltage Reference
Description
EAR99 AD581 Bulk PRODUCTION (Last Updated: 1month ago) voltage reference device 10mA 10V 40muVp-p 0C~70C TA
PDF
Buying Options
Total Price: USD $22.11
Unit Price: USD $22.11049
≥1 USD $22.11049
≥10 USD $20.858955
≥100 USD $19.678257
≥500 USD $18.564387
≥1000 USD $17.513578
Inventory: 966
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Lifecycle Status PRODUCTION (Last Updated: 1 month ago)
Technical
Operating Temperature 0°C~70°C TA
Packaging Bulk
Tolerance ±0.1%
JESD-609 Code e4
Pbfree Code no
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 3
ECCN Code EAR99
Temperature Coefficient 15ppm/°C
Terminal Finish Gold (Au)
Subcategory Voltage References
Technology BIPOLAR
Terminal Position BOTTOM
Peak Reflow Temperature (Cel) NOT APPLICABLE
Number of Functions 1
Supply Voltage 15V
Time@Peak Reflow Temperature-Max (s) NOT APPLICABLE
Base Part Number AD581
Pin Count 3
Number of Outputs 1
Qualification Status Not Qualified
Output Voltage 10V
Output Type Fixed
Number of Channels 1
Trim/Adjustable Output YES
Analog IC - Other Type THREE TERMINAL VOLTAGE REFERENCE
Voltage - Input 13V~30V
Current - Output 10mA
Quiescent Current 1mA
Current - Supply 1mA
Reference Type Series
Noise - 0.1Hz to 10Hz 40μVp-p
Compliance
RoHS Status ROHS3 Compliant
Physical
Mounting Type Through Hole
Package / Case TO-205AA, TO-5-3 Metal Can
Surface Mount NO
Number of Pins 3
